Modular partition panel 102.04

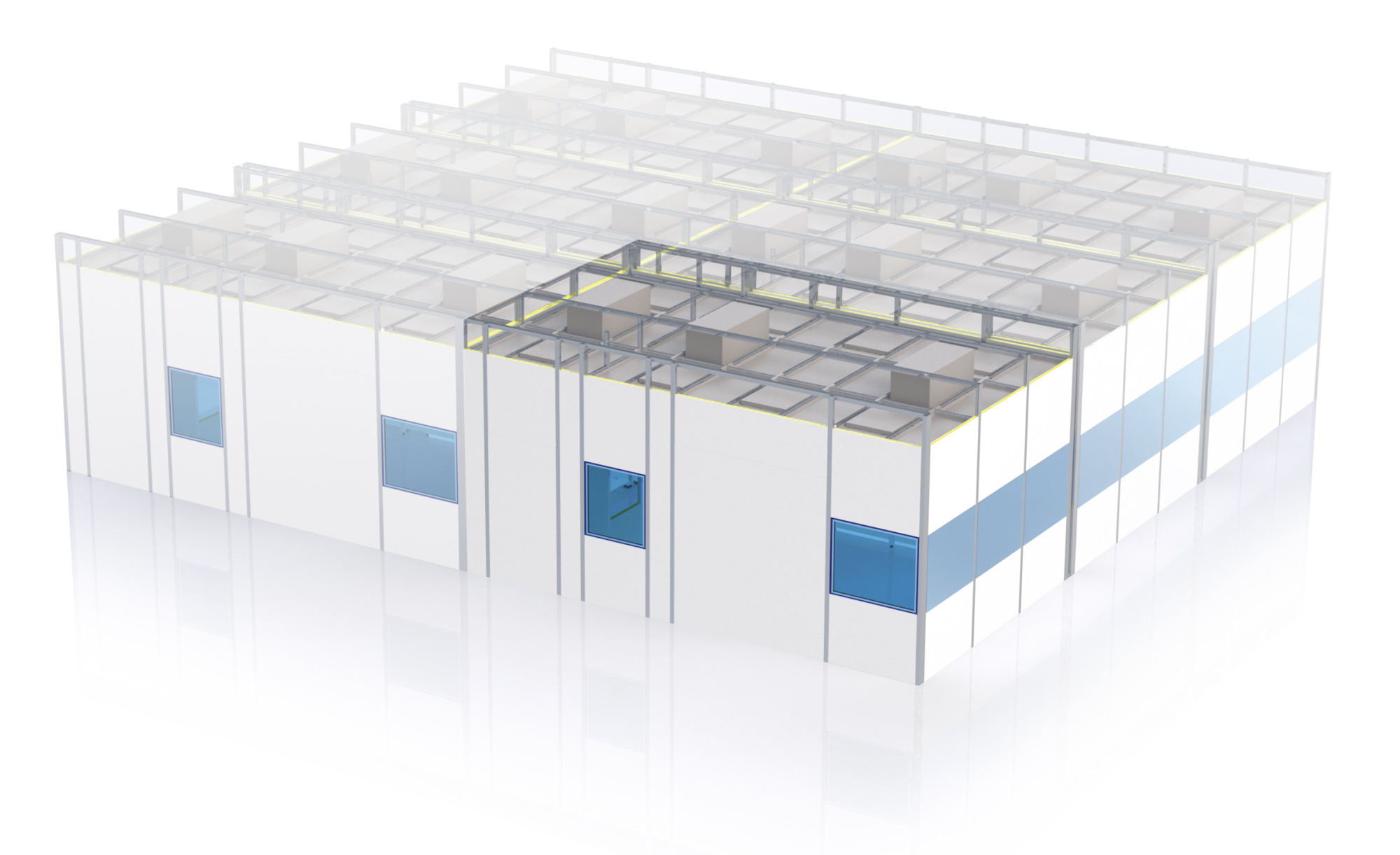

DEVICE DESCRIPTION
- The whole system is self-supporting – it does not need anchoring in walls and in ceiling.
- Dimensions of the module: 6.5 m x 1.25 m, maximum height: 4 m.
- Any number of the modules may be assembled side by side in both directions.
- Air circulation is provided by FFU units; the module does not need any connection to a central HVAC system.
PARTITION WALL SYSTEM
- The support system consists of aluminium profiles and of sandwich-type panels.
- The panels are anchored in the aluminium support profiles. Joints are blinded by covers.
- The aluminium profiles and panels establish a flat plain, thus preventing it from occurrence of non-cleanable spots.
- Inside a partition wall is a sufficient space for distribution of media and electric energy distribution.
CEILING
- Consists of an aluminium grid and of embedded, single-case panels.
- The panels and the grid establish a flat plain, thus providing it from occurrence of non-cleanable spots.
- Into the soffit may be inserted integrated lighting units and openings for sprinkler heads may be made.
- In the walkable variant the soffit features the surface load capacity 75 kg/m2 and the random load capacity 150 kg.
ADVANTAGES
- Simple dismantling and interchangeable parts.
- Any time when necessary, this enables:
- Simple integration of technologies, cabinets, and of other elements,
- Simple layout change of a clean room.
- Meets high demands on hygienic harmlessness, simple cleaning, and disinfecting.
- Simple and rapid assembly.
- Wide scale of colour and material layouts.
TECHNICAL DATA
| Panel type |
|---|
| modular partition panel |
| Panel width |
|---|
| 1190 mm |
| atypical |
W - width in mm according to dimensional range 560 mm, 1190 mm. It is possible to order atypical panel dimensions: min. dimension 300 mm,
max. dimension 1190 mm.nal range 560 mm, 1190 mm. |
| Panel height H |
|---|
| 2550 mm |
| 2750 mm |
| 3050 mm |
| atypical |
Height according to standard dimensional range 2550, 2750, 3050 mm. Preferred dimensions 2550, 2750, 3050 mm. Min. dimension 300 mm,
max. dimension 4000 mm. |
| Side end |
|---|
| lined |
| atypical |
| The side end of the panels is always with the rim that is part of the anchorage to the raster. |
| Bottom end |
|---|
| end for BASIC profile |
| straight |
| atypical |
| The panel that abuts the Basic profile has reinforcement and a turned U-profile. The others are the bottom end always straight. |
| Upper end |
|---|
| straight |
| atypical |
| Mounting in the Basic profile allows us to extend the floor surface layer onto the partitions. |
| Number of cable glands |
|---|
| 2 pcs (1pc 85 mm from the left- 1pc 85 mm from the right) |
| no cable gland |
| cable glands from the left, cable glands from the right |
| Thickness of metal sheet |
|---|
| light version (galvanized metal sheet 0,7 mm) |
| heavy option (galvanized metal sheet 1,2 mm) |
| atypical |
| Filler |
|---|
| mineral wool (100 kg/m3) |
| mineral wool (150 kg/m3) |
| atypical |
| Facing hue and material - standard on the visible side |
|---|
| Galvanized metal sheet, hue RAL 9016 |
| Stainless steel AISI 304 |
| Powder coating (Komaxit), hue RAL |
| Facing hue and material - standard on the back side |
|---|
| Galvanized metal sheet, hue RAL 9016 |
| Stainless steel AISI 304 |
| Powder coating (Komaxit), hue RAL |
| Atypical design |
|---|
| Type design |
| Atypical design |
Type design
0 - Unique specification out of offered versions
Atypical design
Q - atypical design that cannot be uniquely specified by a code |
